Hydraulic Seals for Excavators: What You Need to Know

hydraulic seals

Table of Contents

Are you experiencing leaks, pressure loss, or sluggish performance in your excavator's hydraulic system? Hydraulic seals are critical components that prevent fluid leakage, maintain system pressure, and ensure smooth operation. Choosing the right seal type and material can reduce downtime, minimize repair costs, and extend your machine's lifespan.

Why Are Hydraulic Seals Essential for Excavators?

Excavators depend on hydraulic cylinders for lifting, digging, and moving heavy loads. Hydraulic seals:

  • Prevent fluid leakage to maintain pressure and efficiency.
  • Protect cylinders from dust, debris, and water contamination.
  • Reduce wear and friction, extending component lifespan.
  • Ensure consistent performance, preventing unplanned downtime.

What Are the Main Types of Hydraulic Seals for Excavators?

Each seal type plays a different role in the hydraulic system. Here are the most common ones:

1. Piston Seals

  • Function: Prevent hydraulic fluid from bypassing the piston.
  • Common Materials: Polyurethane (TPU), PTFE, NBR.
  • Best for: High-pressure applications in heavy-duty excavators.

2. Rod Seals

  • Function: Prevent hydraulic fluid from leaking past the cylinder rod.
  • Common Materials: NBR, FKM, TPU.
  • Best for: Excavators exposed to high temperatures & aggressive fluids.

3. Wiper Seals (Scraper Seals)

  • Function: Remove dirt and moisture from the piston rod.
  • Common Materials: TPU, NBR.
  • Best for: Excavators working in muddy or dusty environments.

4. Wear Rings (Guide Rings)

  • Function: Provide lateral support to prevent metal-to-metal contact.
  • Common Materials: PTFE, POM, Phenolic resin.
  • Best for: High-load excavator applications requiring precision.

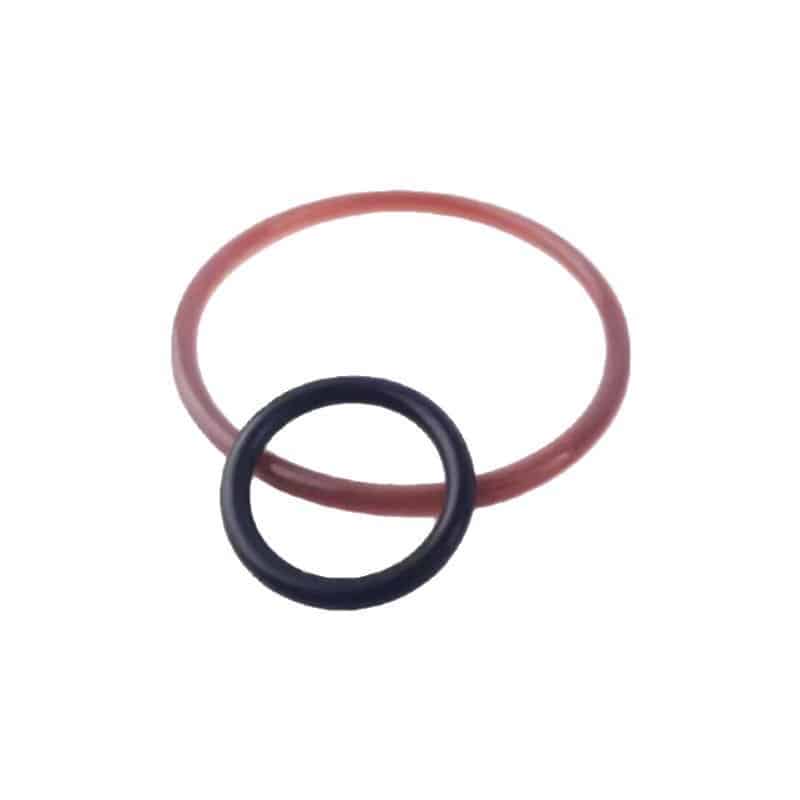

5. O-Rings & Backup Rings

  • Function: Provide secondary sealing support.
  • Common Materials: NBR, FKM, PTFE.
  • Best for: Static sealing applications inside the hydraulic cylinder.

Best Materials for Excavator Hydraulic Seals

The right seal material determines performance, durability, and resistance to chemicals:

Material Temperature Range Best For Key Advantages
Polyurethane (TPU) -40°C to 100°C Rod & wiper seals High wear resistance, flexible
Nitrile Rubber (NBR) -30°C to 110°C General-purpose seals Oil-resistant, cost-effective
Fluorocarbon (FKM/Viton) -20°C to 200°C High-temp applications Heat & chemical resistance
Polytetrafluoroethylene (PTFE) -200°C to 260°C Piston & rod seals Extreme chemical & heat resistance
POM (Acetal Resin) -40°C to 120°C Wear rings High strength, low friction

Recommendation: Polyurethane & PTFE seals offer the best balance of durability, flexibility, and chemical resistance for excavator applications.

How to Measure Hydraulic Seals for Excavators?

Choosing the right seal size is crucial to preventing leaks. Follow these steps to measure correctly:

  1. Measure the Inner Diameter (ID): Use a caliper to measure the internal opening.
  2. Measure the Outer Diameter (OD): Measure the outside edge of the seal.
  3. Measure the Cross-Section (CS): This is the thickness of the seal.

Standard Hydraulic Seal Size Chart (ISO 5597 & AS568)

Seal Type Inner Diameter (ID) Outer Diameter (OD) Cross-Section (CS)
Rod Seal 50 mm 60 mm 5 mm
Piston Seal 75 mm 85 mm 7 mm
Wiper Seal 90 mm 100 mm 6 mm

Common Causes of Hydraulic Seal Failure & How to Prevent It

Understanding failure causes helps extend seal lifespan:

Cause of Failure Prevention Method
Excessive Heat Use FKM or PTFE seals for high-temperature resistance.
Contaminants (Dirt, Water, Debris) Regularly inspect and replace wiper seals.
Improper Installation Always use a seal installation tool.
Hydraulic Fluid Incompatibility Choose chemically resistant seals.
Aging & Wear Follow manufacturer maintenance schedules.

Why You Should Upgrade Your Excavator Seals Today?

🚨 Did you know? 70% of hydraulic failures are caused by poor seals!
📉 Ignoring worn-out seals leads to downtime, oil leaks, and high repair costs.
💡 Solution? High-performance TPU & PTFE seals that withstand extreme conditions.

👉 Upgrade today & extend your excavator’s lifespan!

Get High-Performance Excavator Seals – Request a Free Quote Today!

HENGOSEAL specializes in premium hydraulic seals for excavator cylinders.

🎯 Why Choose Our Seals?

  • Manufactured to industry standards
  • High wear & temperature resistance
  • Compatible with all major excavator brands
  • Fast global shipping with no MOQ

📲 WhatsApp: Chat Now
📩 Email: [email protected]
🌍 Visit Our Store: www.hengoseal.com
🚀 Act Now! Secure Your Excavator Seals Today!




People Also Ask

1. What are the most common hydraulic seals used in excavators?
The most common hydraulic seals include piston seals, rod seals, wiper seals, wear rings, and O-rings.
2. How do I know if my excavator's hydraulic seals need replacement?
If you notice hydraulic fluid leaks, loss of power, or excessive noise, it may be time to replace your seals.
3. What is the best material for high-pressure hydraulic seals?
Polyurethane (TPU) and PTFE are excellent choices for high-pressure applications due to their wear resistance.
4. How long do hydraulic seals last in an excavator?
Seal lifespan depends on operating conditions but typically lasts between 3-5 years with proper maintenance.
5. Can I replace hydraulic seals myself?
Yes, but it's recommended to use professional tools and follow OEM guidelines for installation.
6. Why do hydraulic seals fail?
Common causes include heat, contamination, improper installation, and fluid incompatibility.
7. What’s the difference between rod seals and piston seals?
Rod seals prevent fluid from leaking out, while piston seals prevent leakage within the cylinder.
8. Where can I buy high-quality excavator hydraulic seals?
You can order premium hydraulic seals from HENGOSEAL. Contact us today!
